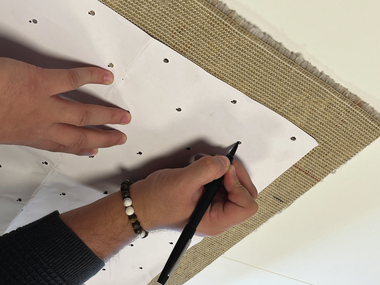

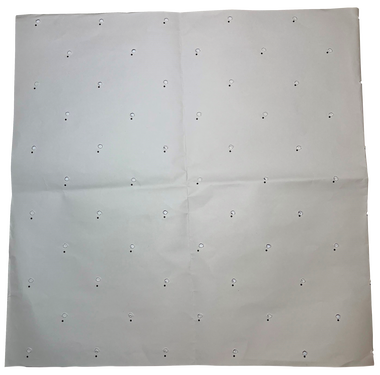

IMPLEMENTATION 1 - Position the paper template on the back of the carpet to mark the stud locations with a pencil.

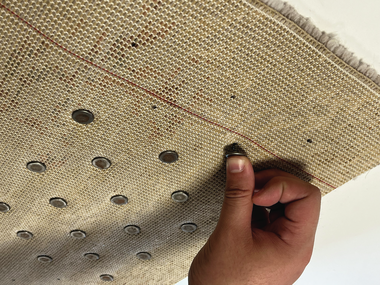

2 - Drive the tip-bases into the back of the carpet, and then tap with a hammer, checking that the tips come out properly on the textile side.

4 - Hit with a hammer to rivet the two parts of the stud together.

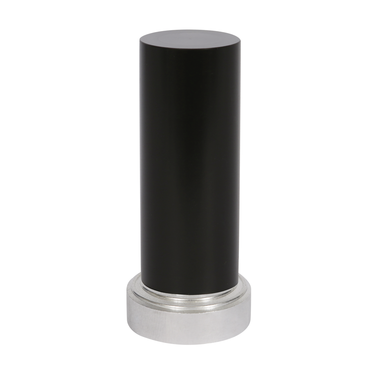

3 - Insert the stud head on the tip and apply the tapping block.

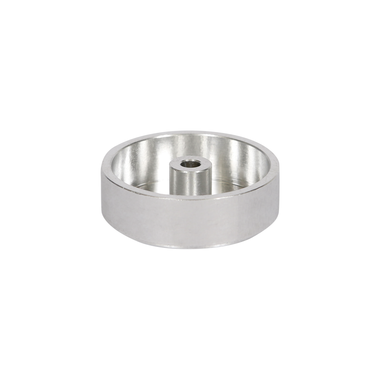

Fluted - Mill aluminium

Fluted - Black aluminium

Fluted - Polished brass

"RIVÉ.ROM" Studs

  • PRODUCT DESCRIPTION

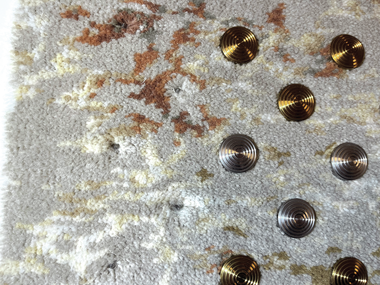

    Metal studs for an attractive finish when installing warning strips on carpet for visually impaired or blind people. The carpet must have a minimum fibre thickn...

    Find out more

  • CHOICE OF CRITERIA
Detailed description

>> Desctexteproduit :

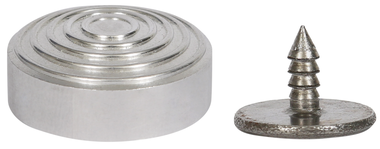

Metal studs for an attractive finish when installing warning strips on carpet for visually impaired or blind people. The carpet must have a minimum fibre thickness of 6 mm. Riveting studs, consisting of two parts: 1 - A tip-base to be driven under the carpet, protruding on the textile side 2 - A tactile warning stud head to be inserted on the textile side on the protruding tip. Ø: 25 mm, Height: 5 mm The floor is protected from any drilling or adhesive application. The kit contains: - 150 riveting studs (150 tip-bases + 150 stud heads) - 1 paper template - 1 tapping block

References -Technical data
refArticle Material Type 1 Packing
4570 Mill aluminium - Fluted For riveting Box of 150 riveting studs (for 1 ml x 0.40 m) + 1 paper template + 1 tapping block
4571 Black aluminium - Fluted For riveting Box of 150 riveting studs (for 1 ml x 0.40 m) + 1 paper template + 1 tapping block
4572 Polished brass - Fluted For riveting Box of 150 riveting studs (for 1 ml x 0.40 m) + 1 paper template + 1 tapping block
