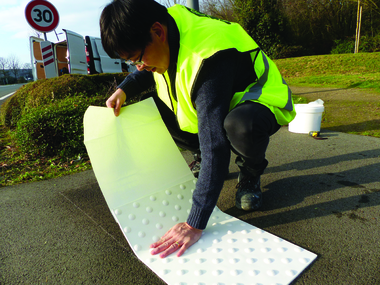

Tile application

ADHEXT Adhesive tile

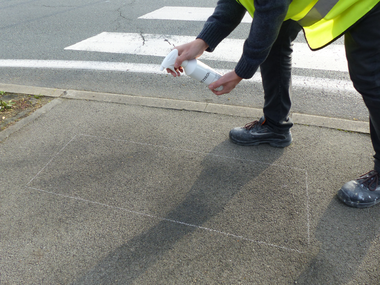

Application of activator

Beige chips

Grey chips

Grey

Yellow

To be glued

White

To be glued

White

Self-adhesive

Self-adhesive

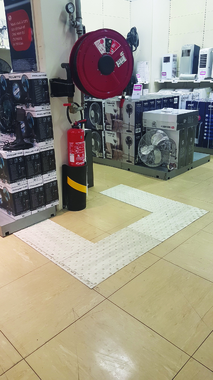

«exteline» tactile warning tiles

  • PRODUCT DESCRIPTION

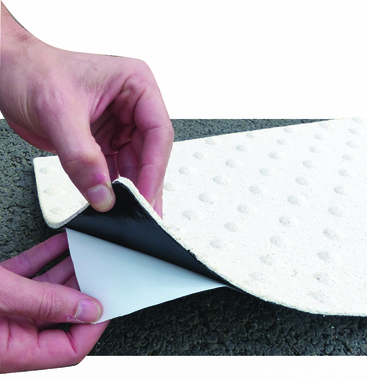

    The tile is also available in a self-adhesive version. On concrete or surfacing, spray ACTISOL activator ref. 14231 just before applying the self-adhesive tile.

    Find out more

  • CHOICE OF CRITERIA
Detailed description

>> Desctexteproduit :

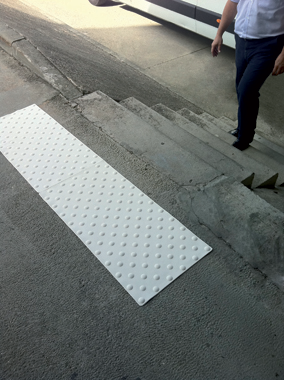

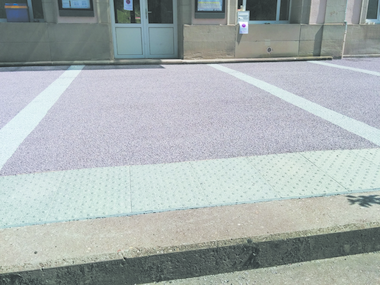

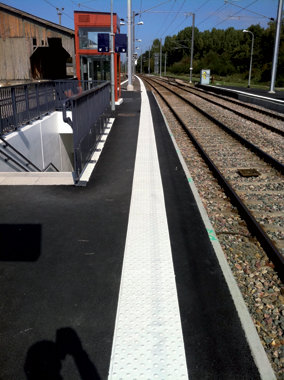

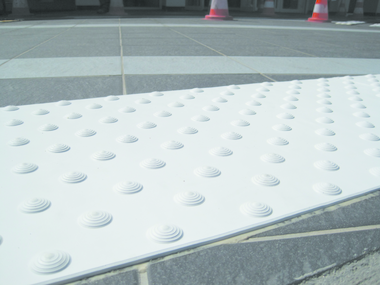

Tactile and visual system designed to alert blind and visually impaired people to an imminent danger on their path, such as: • Road crossings • Railway platform edges • Bus stops • Outdoor stairs, etc. Weight 1.8 kg (820x400 mm) and 1.1 kg (600x400 mm) Two materials: - Made of methacrylate resin, the tile is highly flexible, does not turn yellow under UV light, is highly resistant to tearing, has excellent slip resistance and is resistant to soiling. Made of methacrylate resin + marble, corundum and silica aggregates (granules). Two types of fixing: - To be bonded: using METACOL adhesive (Methacrylate). For concrete and asphalt substrates, apply a METAPRIM bonding primer. Press firmly between the studs. - Self-adhesive: The tile is also available in a self-adhesive version. On concrete or asphalt, spray ACTISOL activator ref. 14231 just before applying the self-adhesive tile.

>> Informations supplementaires p :
The tile is also available in a self-adhesive version. On concrete or surfacing, spray ACTISOL activator ref. 14231 just before applying the self-adhesive tile.

References -Technical data
refArticle Material Colours Thickness Dimensions Type 1 designationComplete infos supplementaires R

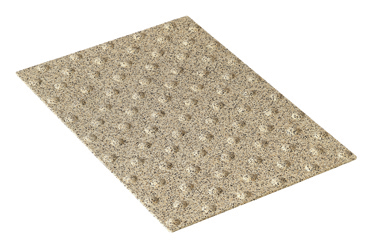

4208 Methacrylate Beige chips 7 mm 600 x 400 mm To be glued EXTELINE METHACRYLATE WARNING TILE 60 X 40CM BEIGE

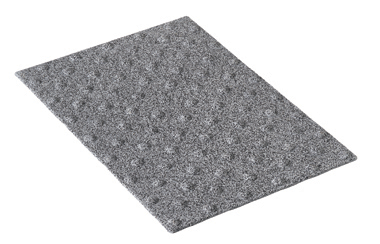

4207 Methacrylate Grey chips 7 mm 600 x 400 mm To be glued EXTELINE METHACRYLATE WARNING TILE 60 X 40 CM GREY

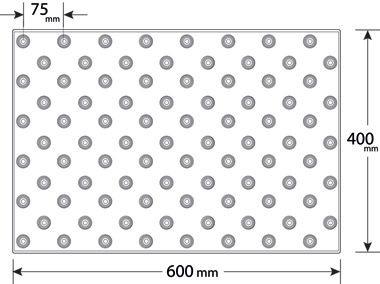

4206 Methacrylate White 7 mm 600 x 400 mm To be glued EXTELINE METHACRYLATE WARNING TILE 60 X 40CM WHITE

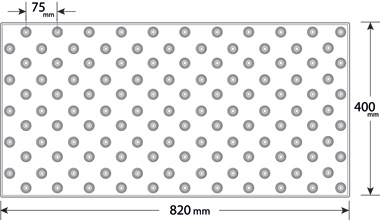

4218 Methacrylate Grey Ral 7040 7 mm 820 x 400 mm To be glued EXTELINE TACTILE TILE GREY 82 X 40 CM

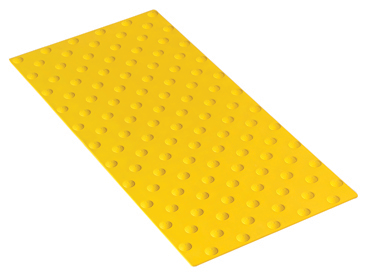

4219 Methacrylate Yellow Ral 1023 7 mm 820 x 400 mm To be glued EXTELINE TACTILE TILE YELLOW 82 X 40 CM
14220 Methacrylate White* 7 mm 820 x 400 mm To be glued Special volumes. Minimum order quantity 60 pieces. In boxes of 20 pieces which may not be split.

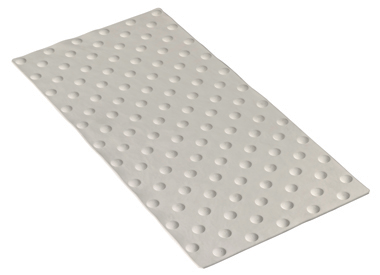

4220 Methacrylate White 7 mm 820 x 400 mm To be glued EXTELINE TACTILE TILE WHITE 82 X 40 CM
4210 Methacrylate White 7 mm 600 x 400 mm ADHEXT Self-adhesive EXTELINE METHACRY WARNING TILE 60X40CM WHITE SELFA
4205 Methacrylate White 7 mm 820 x 400 mm ADHEXT Self-adhesive EXTELINE METHACR WARNING TILE WHITE 82X40 CM SELFA
14205 Methacrylate White* 7 mm 820 x 400 mm ADHEXT Self-adhesive Special volumes. Minimum order quantity 60 pieces. In boxes of 20 pieces which may not be split.
Document downloads
Ref. 4208 Video See the video
Ref. 4207 Video See the video
Ref. 4206 Video See the video
Ref. 4218 Video See the video
Ref. 4219 Video See the video
Ref. 14220 Video See the video
Ref. 4220 Video See the video
4218-4219-4220 DALLES PODOTACTILES EXTELINE_GB.pdf fichier FT 4218-4219-4220 DALLES PODOTACTILES EXTELINE_GB.pdf
4205 ROMUS SELF-ADHESIVE EXTELINE WARNING TILE_GB.pdf fichier MD 4205 ROMUS SELF-ADHESIVE EXTELINE WARNING TILE_GB.pdf
