0

Scale selection

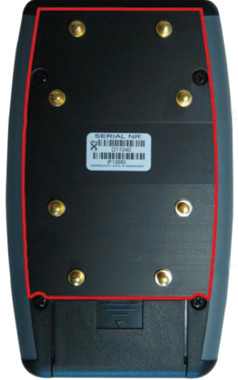

8 spring electrodes forming a very wide measurement area

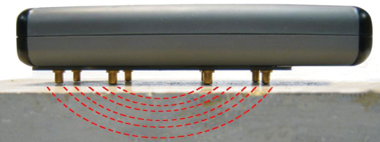

Spring electrode Electric field

Concrete support scale Beeps at 4.5 %

Anhydrous support scale Beeps at 0.5 %

Plaster support ladder

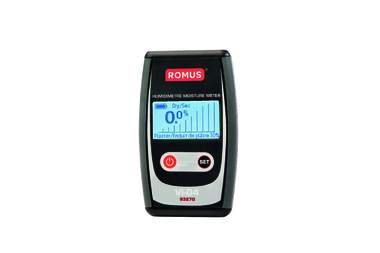

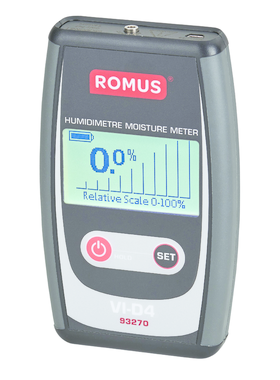

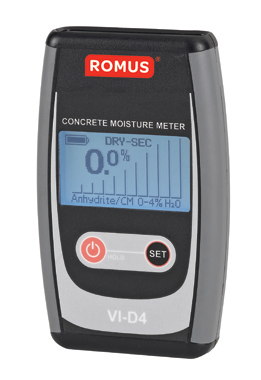

"VI-D4" moisture indicator

  • PRODUCT DESCRIPTION

    «VI-D4» determines the moisture rate of a material by measuring its electrical impedance. For this, the device creates a low intensity alternating electric fie...

    Find out more

  • CHOICE OF CRITERIA
Detailed description

>> Desctexteproduit :

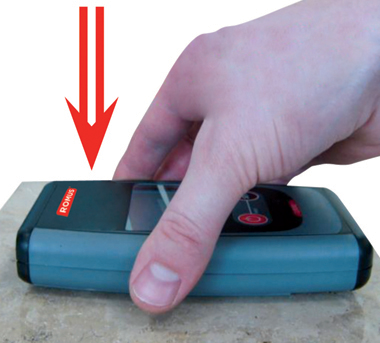

Detects damp up to 4 cm deep, even through ceramic tiles. Large measuring area with eight spring-loaded electrodes. Specially calibrated to give % humidity measurements according to the four selection ranges. Supplied with two LR6 batteries and a protective cover. Dimensions: 150 x 90 x 33 mm Weight: 230 g. VI-D4: 4 DTU 53.12 measurement scales: 1. Concrete (Carbide method): 0-6% - Beep at 4.5%. 2. Anhydrite screed (Carbide method): 0-4% - Beep at 0.5% 3. Plaster-render (Carbide method): 0-10% - Beep at 5% 4. Relative scale: 0-100% VI-D4 i: 7 measurement scales (without beep, without interpretation) 1. Concrete (0-6% H2O) 2. Cement screed (0-6% H2O) 3. Cement screed CM carbide method (0-4% CM) 4. Anhydrite screed (0-3.5% H2O) 5. Anhydrite screed (0-1.9% CM) 6. Scale 15.3 (0.3-15.3 m) 7. Relative scale (0-100%)

>> Fonction p :
«VI-D4» determines the moisture rate of a material by measuring its electrical impedance. For this, the device creates a low intensity alternating electric field, which being measued by the device, gives the moisture rate.

References -Technical data
refArticle Product name descriptifReference
93275 " VI-D4-i " International calibration 8 scales
Document downloads
Ref. 93275 Video See the video
93270 INDICATEUR VI-D4_FR-GB-DE-ES-NL.pdf fichier MD 93270 INDICATEUR VI-D4_FR-GB-DE-ES-NL.pdf
