«design clip» reducer
-
PRODUCT DESCRIPTION
«design clip» reducer
-
CHOICE OF CRITERIA
«design clip» reducer
>> Descriptiffamille :
Each profile is supplied in an individual sheath containing :
• a drilled base to be screwed to the floor,
• a threshold cover to be clipped on the base, • screws and plugs.
| refArticle | Material | Length | Width | Height | Type 1 | Packing | designationComplete | descriptifReference | Colours | |
|---|---|---|---|---|---|---|---|---|---|---|

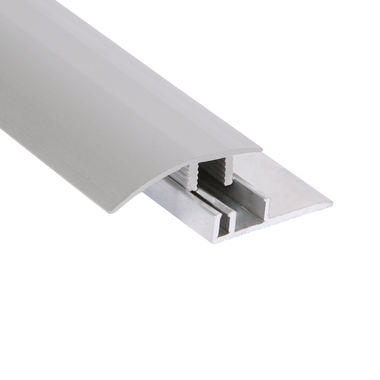

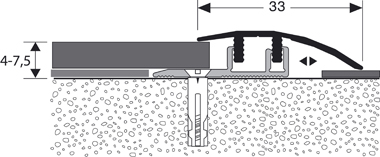

| 3360 | Alu silver | 0.90 m | 33 mm | 4 - 7.5 mm | Drilled | Display prepacked sheath - Supplied with screws and plugs | DESIGN CLIP REDUCER ALU SILVER 0.90M |
|
||
| 3361 | Alu silver | 2.70 m | 33 mm | 4 - 7.5 mm | Drilled | Display prepacked sheath - Supplied with screws and plugs | DESIGN CLIP REDUCER ALU SILVER 2.70M |
|
||

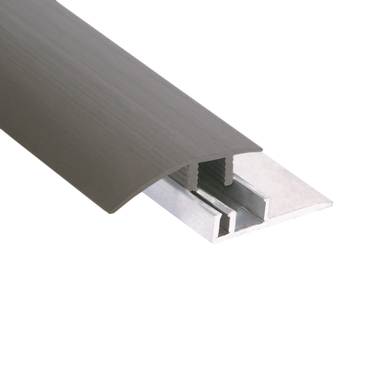

| 3362 | Alu titanum | 0.90 m | 33 mm | 4 - 7.5 mm | Drilled | Display prepacked sheath - Supplied with screws and plugs | DESIGN CLIP REDUCER ALU TITANUM 0.90M |
|
||
| 3363 | Alu titanum | 2.70 m | 33 mm | 4 - 7.5 mm | Drilled | Display prepacked sheath - Supplied with screws and plugs | DESIGN CLIP REDUCER ALU TITANUM 2.70M |
|
||

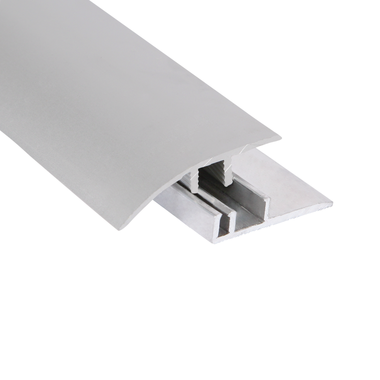

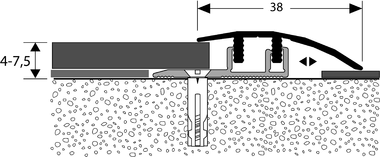

| 3365 | Alu silver | 3.00 m | 38 mm | 4 - 7.5 mm | Drilled | Display prepacked sheath - Supplied with screws and plugs | DESIGN CLIP REDUCER LARGE ALU SILVER 3M | Wider cover for greater expansion. | Alu silver |
|

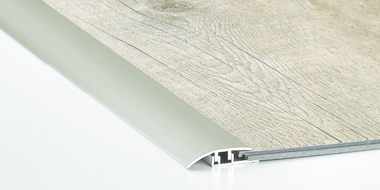

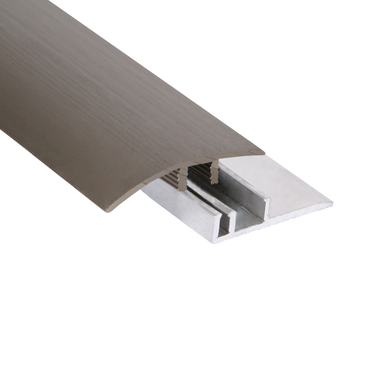

| 3366 | Alu titanum | 3.00 m | 38 mm | 4 - 7.5 mm | Drilled | Display prepacked sheath - Supplied with screws and plugs | DESIGN CLIP REDUCER LARGE ALU TITANUM 3M | Wider cover for greater expansion. | Alu titanium |
|
| Réf. 3360 | Technical sheets | Dowload PDF |
| Réf. 3361 | Technical sheets | Dowload PDF |
| Réf. 3362 | Technical sheets | Dowload PDF |
| Réf. 3363 | Technical sheets | Dowload PDF |
