0

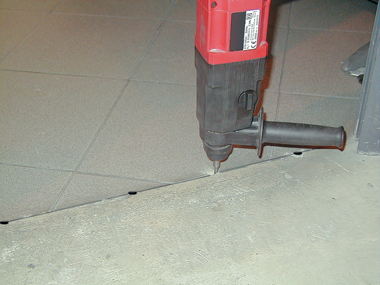

1 - Before laying the flooring, trace a line on the floor and then drill 6 mm diam. holes (5 / metre).

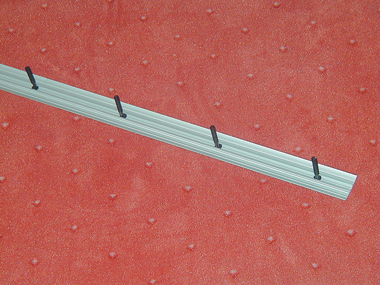

2 - Insert the corresponding number of plugs into the profile and slide them into place.

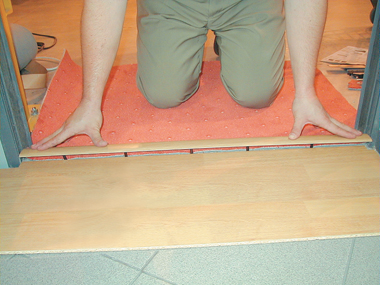

3 - With the flooring fitted, adjust the position of the plugs in line with the holes and firmly push in.

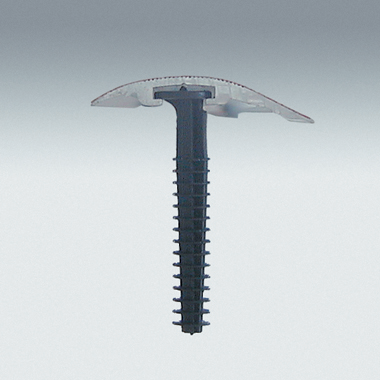

Eccentric headed plug Fluted finish

If holes are not perfectly aligned, rotate the plug so that it is opposite the hole.

ANODISED ALUMINIUM Alu silver

Alu gold

Invisifix® 38 mm

  • PRODUCT DESCRIPTION

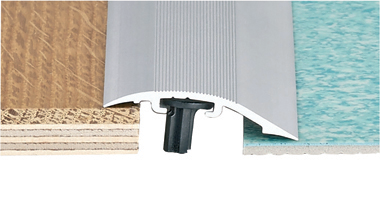

    For junctions between levels which differ by up to 11 mm.

    Find out more

  • CHOICE OF CRITERIA
Detailed description

>> Descriptiffamille :
Profile with invisible fixing by winged plugs. • Simple and attractive fitting of various profiles. • Ideal for transition to laminates as its fitting flexibility always allows coverings to expand, but also for soft floors. • Plugs do not damage the profiles • Can be removed if necessary. 0.93 m : IN DISPLAY PREPACKED SHEATH with plugs 2.80 m : LOOSE IN PROTECTIVE SHEATH with plugs

>> Desctexteproduit :
For junctions between levels which differ by up to 11 mm.

References -Technical data
refArticle Material Length Width Height Type 1 Packing designationComplete
1084 Alu silver 2.80 m 38 mm 4 - 11 mm Drilled Loose in protective sheath with plugs. INVISIFIX REDUCER ALU SILVER 38MM 2.8M
301084 Alu silver 0.93 m 38 mm 4 - 11 mm Drilled In display prepacked sheath with plugs. INVIS REDUCER SILVER 38-0.93M DISPL
Document downloads
Réf. 1084 Technical sheets Dowload PDF
Réf. 301084 Technical sheets Dowload PDF
